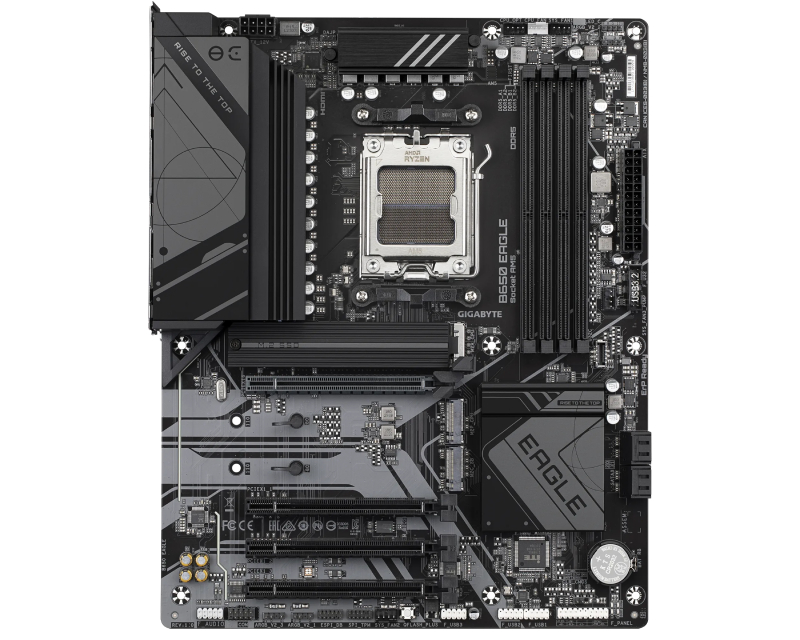

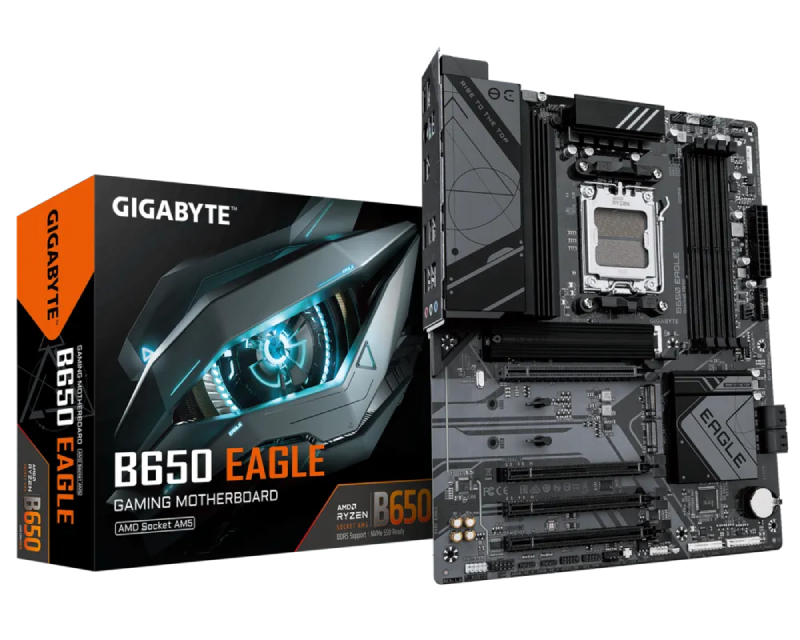

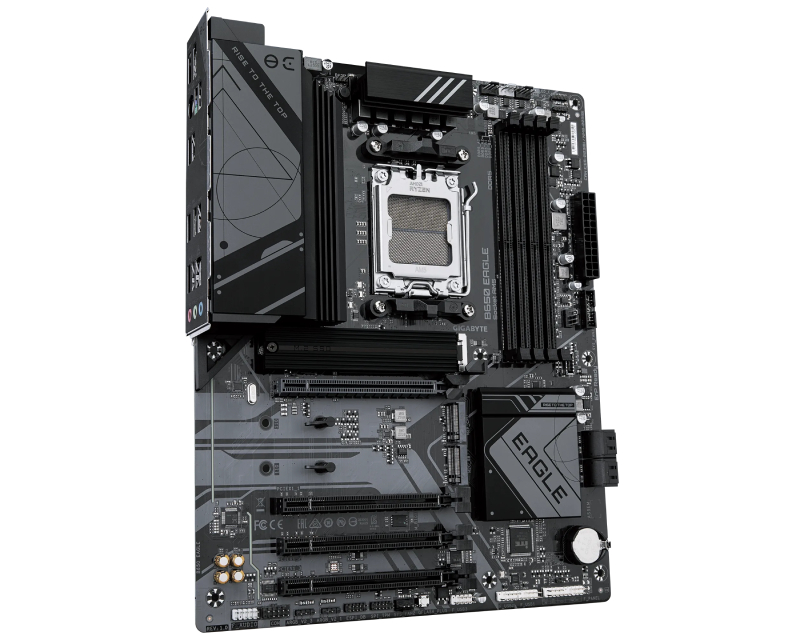

GIGABYTE B650 EAGLE rev 1.x motherboard

24142,00 rsd

Price includes VAT.
All rights under the Consumer Protection Act are guaranteed.
The exact information about the importer and the country of origin is stated on the product declaration.

Goods in stock: A lot

Доступный : 42 Продал : 0

42 в наличии

Добавить в корзину

Buy Now

Артикул: PLO03619 Categories: Motherboard, PC components

Описание

Brand	GIGABYTE
Network
Wired network (LAN)	1000Base-T (Gigabit)
Model	Realtek
Complaints period
Complaints period	36 months
Other features
Supported technologies	Q-Flash Plus, GIGABYTE Control Center
Audio
Number of channels	2/4/5.1/7.1
Model	Realtek
Note	High Definition
Internal connections
Power connections	1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
USB-A	1 x support for 1 USB 5Gbps port
USB 3.2	1 (support for 1 USB 3.2 Gen 1 Type C port), 1x Gen1
USB-C	1 x support for 1 USB 5Gbps port
USB 2.0	3
Audio	1x Front panel audio
Serial port	1
Other connections	1x TPM Header, 1 x front panel header, 1 x Clear CMOS jumper, 2x System Fan header, 4 x SATA 6Gb/s, 1 x RGB LED strip header, 1 x CPU fan header, 1x CPU fan/water cooling pump header, 1 x Q-Flash Plus button, 3x M.2 Socket 3, 3x addressable RGB Gen2 LED strip headers, 1 x system fan/water cooling pump headers
Note	Additional brackets or connectors on the case are required to utilize certain internal connectors
Memory
Memory TYPE	DDR5
Memory slots	4
Memory clock [MHz]	6,000MT/s (OC), 7,200MT/s (OC), 7,000MT/s (OC), 6,800MT/s (OC), 6,600MT/s (OC), 6,400MT/s (OC), 6,200MT/s (OC), 5,200MT/s, 4,800MT/s, 7,600MT/s (OC), 5,600MT/s (OC), 4,400MT/s
Maximum total memory	256GB
Other features	Support for non-ECC UDIMM memory, Dual Channel, Support for AMD EXTended Profiles for Overclocking (EXPO)
Physical characteristics
Format	ATX
Dimensions	305mm x 244mm
Fixing holes	8
Slots
PCIe x16	1x PCI Express 4.0, 3x PCI Express 3.0
PCI slot	4
Basic characteristics
Socket	AMD AM5
Chipset	AMD B650
Graphics	AMD
Storage interface
SATA connectors (total)	4
SATA connectors (total)	SATA III 6Gbps
Number of M.2 slots	3
M.2	3x M.2
RAID	RAID 0, RAID 1, RAID 10

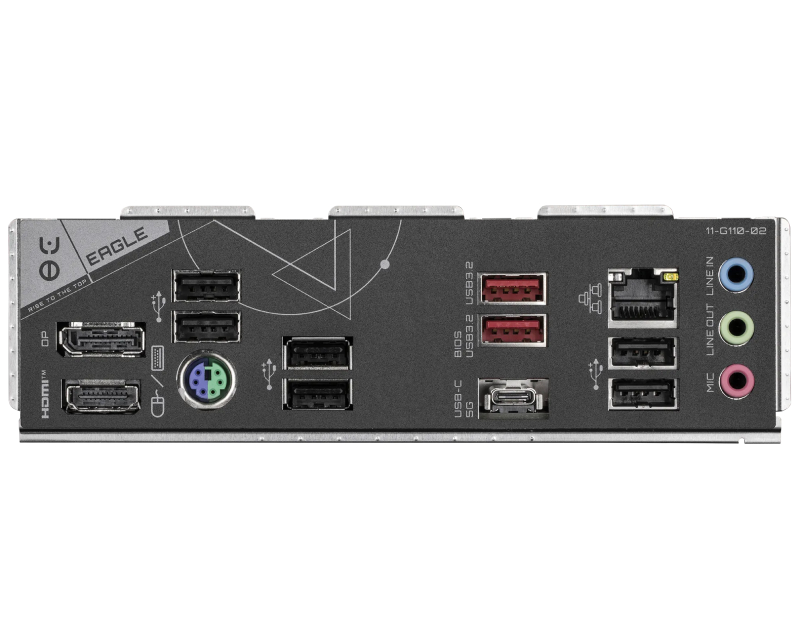

Rear panel connectors
Number of DisplayPort ports	1
Display port	1x DisplayPort
Number of HDMI ports	1
HDMI	1x HDMI
PS/2	1 (keyboard or mouse)
Total USB ports	9
Total USB-C ports	1
USB-A ports	2x USB 10Gbps (3.2 Gen 2), 6x USB 2.0
RJ-45 (LAN)	1
USB 3.2	2 (Type A) Gen2
Audio	3x 3.5mm
USB 2.0	6
Other connections	2x SMA antenna connectors (2T2R)
